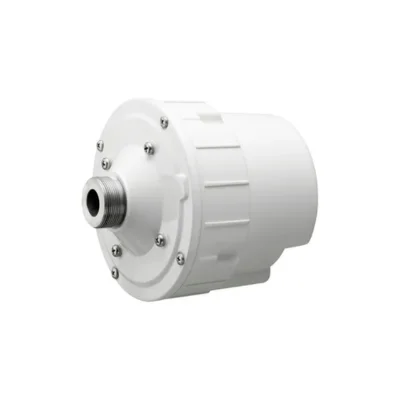

TOA TU – 652M Drive Units for Horn Speakers
The TOA TU-652M Drive Unit is a highly efficient, durable component ideal for horn speakers in Pakistan. Known for its robust build and compatibility with TOA’s horn speaker series, this unit delivers loud, clear audio, making it suitable for outdoor events, mosques, and large gatherings. With a 50W power rating, it’s crafted to withstand challenging weather, ensuring consistent sound quality across various environments.
For Pakistani users, it provides a reliable choice for setups needing strong, crisp sound, whether in a masjid or an outdoor venue. The TU-652M is a popular option for professionals seeking efficient audio solutions that stand out. Contact us for the best TOA TU-652M prices, and explore our range of TOA horn speakers, reflex horn models, and outdoor speakers to enhance your audio experience!
| Specification | Details |
|---|---|
| Rated Input | 50 W |
| Rated Impedance | 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 96 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise) |
| Frequency Response | 45 Hz – 20 kHz (peak -20 dB) |
| Speaker Component | 20 cm (8″) coaxial cone-type |
| Dimensions of Fixing Hole | Mounting hole: φ250±3 mm (φ9.84″±0.12″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″) |
| Dimensions | φ280 × 92 (D) mm (φ11.02″ × 3.62″) |
| Finish | Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
| Speaker Mounting Method | Spring clamp |
| Weight | 1.6 kg (3.53 lb) |
| Accessory | Paper pattern …1 |
| Connection | Push-in connector (bridging terminal-2 branch type) |
| Applicable Cable | 600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16) |
