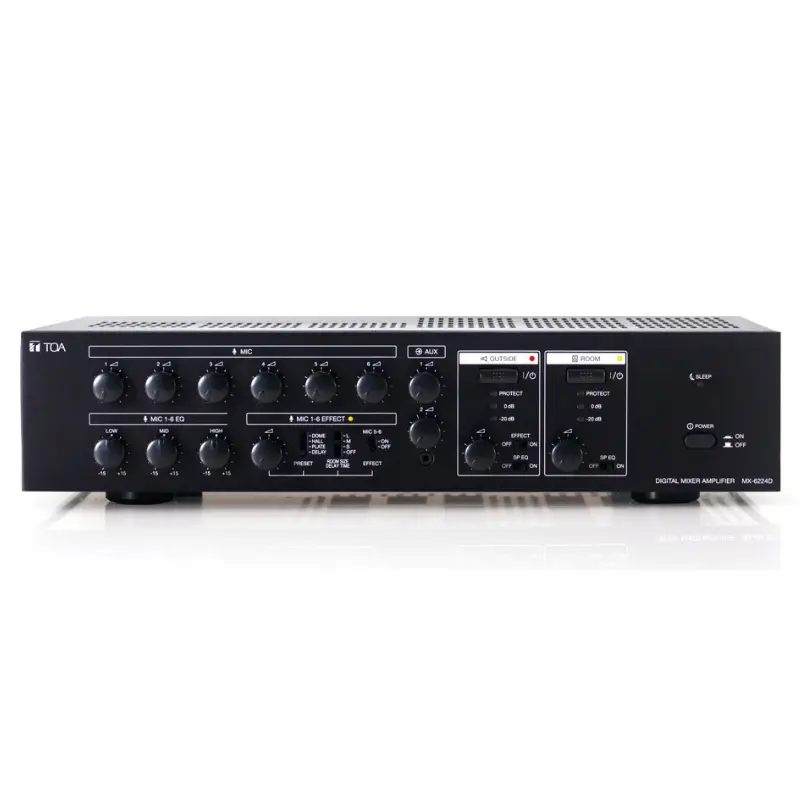

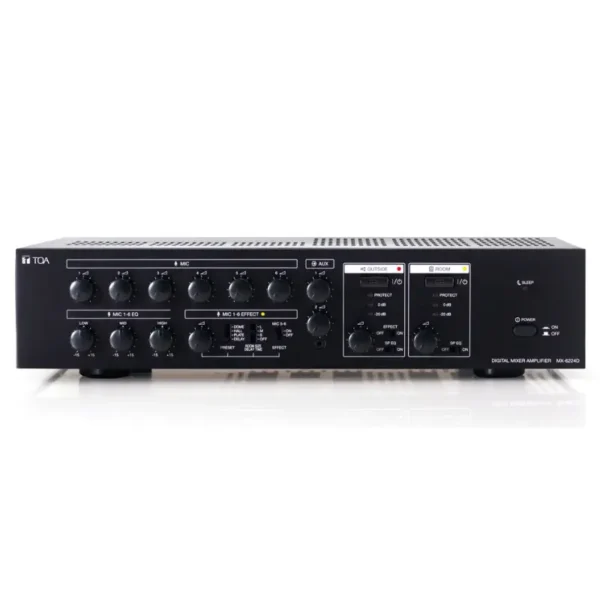

TOA MX-6224D Digital Mixer Amplifier Price in Pakistan
The TOA MX-6224D is a high-performance digital mixer amplifier specially built for mosque sound systems. Ideal for small to medium-sized mosques, this all-in-one solution combines two 240W Class D amplifiers, a digital sound processor, and a built-in effector to deliver clear and controlled sound for prayer calls, sermons, and announcements.
| Feature | Details |
|---|---|
| Power Source | 220 – 240 V AC, 50 / 60 Hz |
| Power / Current Consumption | 100 W (IEC60065), 570 W (at rated output, both channels) |
| Rated Output | 2 × 240 W (100 V, 42 Ω) |
| Speaker Output | 2 zones, 100 V (42 Ω) |
| Frequency Response | 50 Hz – 20 kHz |
| Distortion | < 1% |
| S/N Ratio | 60 dB(A) |
| Operating Temperature | 0°C to +40°C |
| Number of Channels | 8 |
| Connectable Microphones | 6 |
| Inputs | MIC 1: -50 dBV (phantom ON) / -60 dBV (phantom OFF), 600 Ω, 6.3mm jack MIC 2–4: -66 dBV, 200 Ω, 6.3mm jack or XLR MIC 5–6: -60 dBV, 600 Ω, 6.3mm jack or XLR AUX 1: -10 dBV, 10 kΩ, RCA (1 pair) AUX 2: -20 dBV, 10 kΩ, stereo mini jack |
| Outputs | Speaker Output: 2 zones, 100 V (42 Ω), galvanic isolated, M4 terminal Recording Output: 0 dBV, 600 Ω, RCA (1 pair) Effect Bus Output: 0 dBV, 600 Ω, RCA (1 pair) Preamplifier Output: 0 dBV, 600 Ω, RCA (ROOM and OUTSIDE outputs) |
| Finish | Aluminium, steel plate, black |
| Dimensions (W × H × D) | 420 × 99.8 × 360.6 mm |
| Weight | 6.1 kg |
