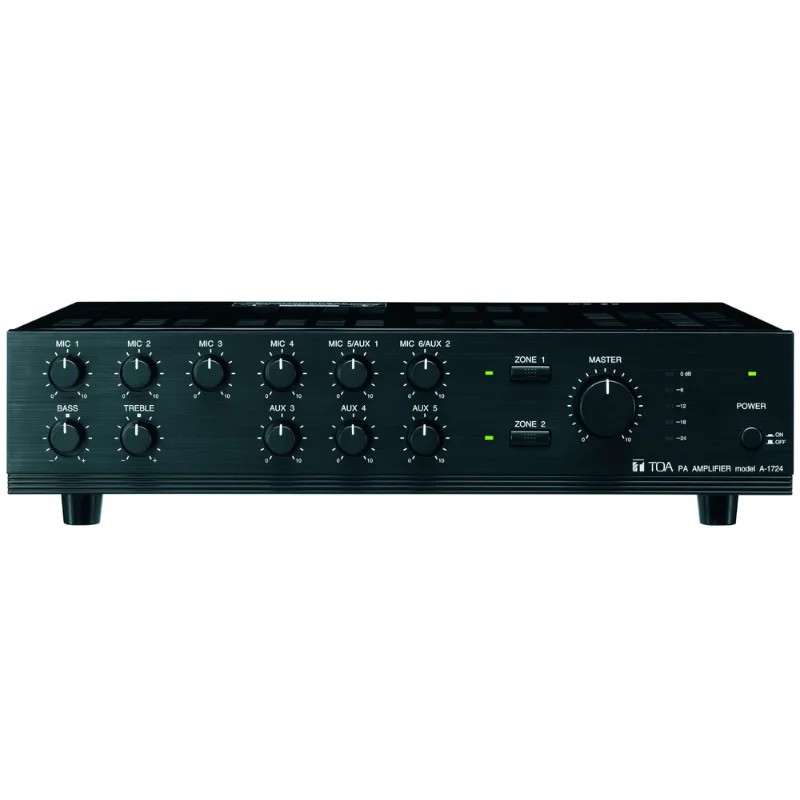

TOA A-1724 Mixer Amplifier

Available in 3 output versions: 60W, 120W, and 240W
6 Microphone inputs and 5 AUX inputs – up to 9 sources simultaneously
User-friendly front panel for intuitive operation
2-zone speaker output with individual zone control buttons
Can broadcast from 3 different program sources
High-quality circuitry for wide frequency response (50 Hz – 20 kHz)
Recording output available via RCA jack
AUX inputs support tuner, CD player, or other BGM sources
Durable steel/ABS build with sleek black finish

TOA A-1724 Mixer Amplifier Price in Pakistan

TOA A-1724 Mixer Amplifier Ideal for Mosques, churches, factories, schools, and large halls – the TOA A-1724 240-watt is a powerful, user-friendly mixer amplifier designed for reliable performance in diverse PA system applications such as announcements, background music (BGM), and general broadcasting. To explore more, visit Masjidsound.pk

Specification	Details
Model	TOA A-1724
Power Source	220 – 230 V AC, 50 / 60 Hz
Power Consumption	532 W
Rated Output	240 W
Frequency Response	50 Hz – 20 kHz
Distortion	< 2% (at 1 kHz, rated output)
S/N Ratio	100 dB(A) (Master volume: minimum)
Number of Channels	1
Connectable Microphones	6
Microphone Inputs	MIC 1–6: -60 dBV, 600Ω, electronically balanced, XLR-3-31 & phone jack combo
AUX Inputs	AUX 1–2: -20 dBV, 600Ω, electronically balanced (XLR/phone jack combo)
	AUX 3–4: -20 dBV, 10kΩ, unbalanced (RCA pin jack)
	AUX 5: -20 dBV, 10kΩ, unbalanced (XLR/phone jack combo)
	Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable
PWR AMP IN	0 dBV, 600Ω, unbalanced (RCA pin jack)
Outputs	REC: 0 dBV, 600Ω, unbalanced (RCA pin jack)
	SPEAKER: 100V (42Ω), 4–16Ω
Finish	Steel plate, ABS resin, black
Dimensions (W x H x D)	420 × 107.7 × 367 mm
Weight	13.5 kg
