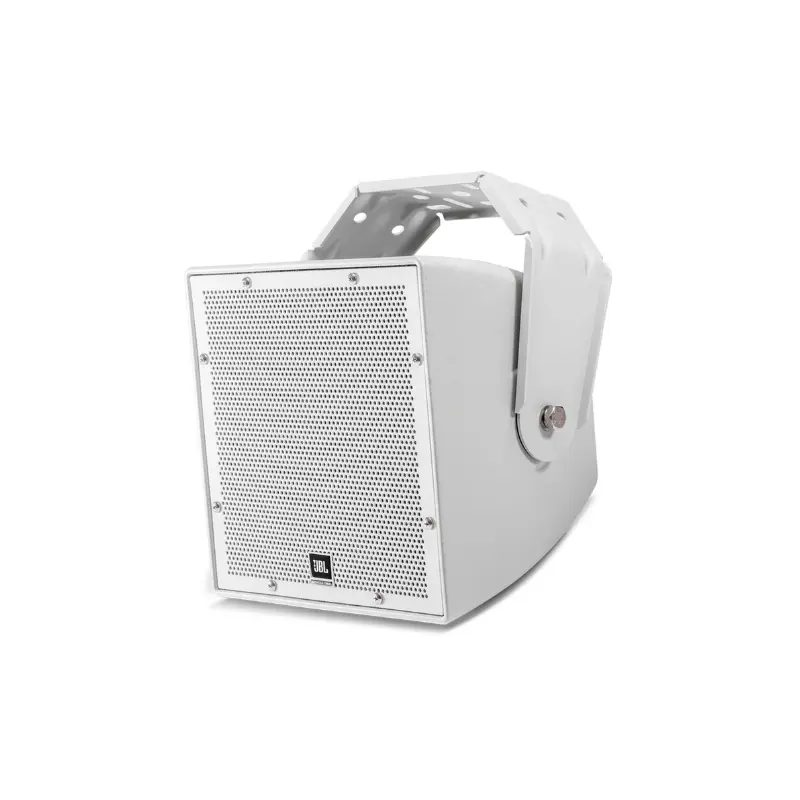

JBL AWC62 Professional Loudspeaker Price in Pakistan
The JBL AWC62 Professional Loudspeaker is a premium-grade, weather-resistant engineered for quality performance speech and music reproduction in outdoor and challenging environments. With an IP56 rating and rugged Kevlar-reinforced components, it’s ideal for masjids, public spaces, and commercial outdoor sound systems. It delivers clear, full-range audio with a consistent 110° x 110° coverage and supports both low-impedance and 70V/100V installations. Perfect for applications requiring reliability, clarity, and wide sound dispersion.
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 70 Hz – 18 kHz |
| Frequency Response (±3 dB) | 100 Hz – 16 kHz |
| Coverage Pattern | 110° x 110° |
| Directivity Factor (Q) | 7.2 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.9 dB |
| System Power Rating | 175W (2 hrs), 120W (100 hrs) |
| Sensitivity (2.83V @ 1m) | 92 dB |
| Max SPL (1m) | 114 dB (peak 120 dB), 112 dB at 120W Tap |
| Crossover Frequency | 1.8 kHz, 3rd order (high & low pass) |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 120W, 60W, 30W, 15W / 100V: 120W, 60W, 30W |
| LF Driver | 6.5″ Kevlar cone, 1.5″ voice coil |
| HF Driver | 1″ diaphragm, 1″ voice coil |
| HF Protection | SonicGuard™ overload protection |
| Enclosure | ABS with glass fiber, IP56-rated |
| Grille | Zinc-rich steel, 3-layer with mesh and foam |
| Input Connection | Covered barrier strip, up to 12 AWG |
| Environmental Protection | IP56, MIL Spec 810, ASTM G85 compliant |
| Dimensions | 259 x 259 x 255 mm (309 mm with bracket) |
| Net Weight | 6.8 kg (15 lb), 7.7 kg (17 lb) with bracket |
| Shipping Weight | 8.8 kg (19.5 lb) |
| Included Accessories | U-bracket (matches color) |
| Available Colors | Gray (Pantone 420C) or Black (-BK) |
