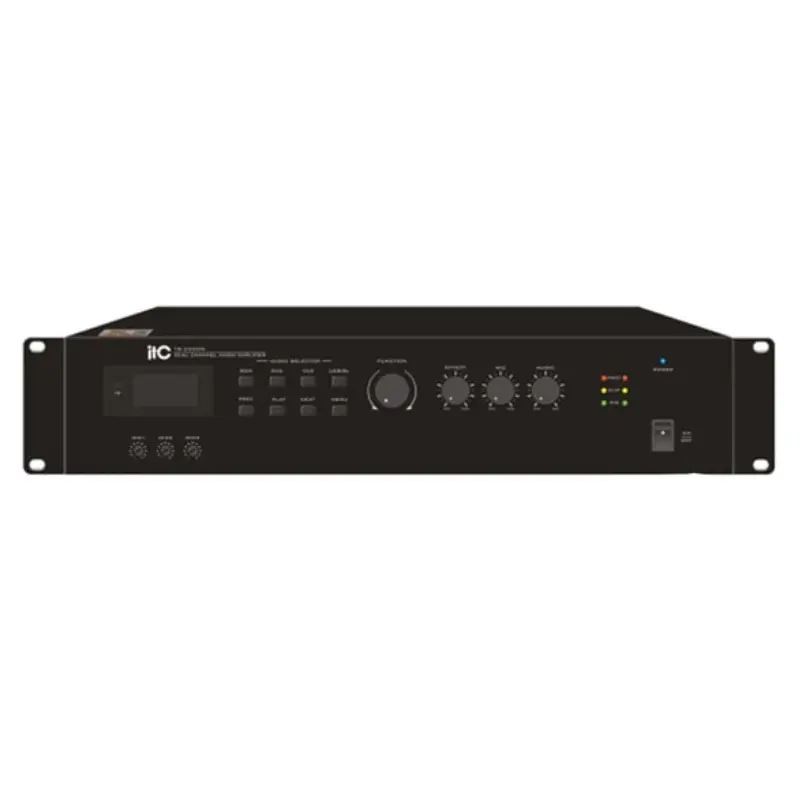

ITC T-2240ME Multimedia Amplifier
Click to enlarge

ITC T-2240ME Multimedia Amplifier

  • The audio source has multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone, etc.;
  • Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation;
  • The control function is realized through infrared remote control, coded switches, and buttons;
  • Panel LCD screen intuitively displays of various functions and working status;
  •  With 3RCA line inputs and 5 channel balanced microphone ( 3 mics with Phantom power)inputs;
  • With DSP processor, multiple preset scene modes;
  • The volume of each microphone is independently adjustable, the effect is adjustable, and the music volume is independently adjustable.Treble, Alto, Bass adjustment;
  • Built-in RS485 communication central integrated control function，which is matching with TS-9135A；
  • Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats
  • With the soft start protection function of switch , with voltage limit, short circuit, overload, and overheat protection;
  • Panel: Aluminum alloy material;
  • Built-in 48V phantom switch control function;
  • Support Bluetooth function. It can connect with mobile phones, computers and other devices;
  • Each microphone input has a gain adjustment function, enabling the microphone can best match the input status of the power amplifier.
Category:
Description

ITC T-2240ME 2-Channel Multimedia Amplifier Price in Pakistan

The ITC T-2240ME is a professional 2-channel multimedia amplifier designed for delivering powerful, clear, and flexible audio. With 240W per channel, built-in DSP sound processing, and support for a wide range of input sources—including optical, coaxial, USB, Bluetooth, and microphone—it’s perfect for Masjids and other advanced audio environments.
Visit Masjidsound.pk to get a Free Quote

Specification T-2240ME
Rated Output Power 2×240W @ 4Ω / 2×240W @ 100V
Mic Input Sensitivity & Impedance ±2.5mV/600Ω – ±200mV/10KΩ (Balanced w/ Phantom Power)
DVD / VCD / BGM Input 350mV/10KΩ (Unbalanced)
Optical / Coaxial Input 1000mV
Output Ports SW (150Hz): 1V/470Ω, PRE: 1V±50mV/470Ω, REC: 200mV±20mV/470Ω
Mic Tone Control Bass, Alto, Treble: ±10dB at 100Hz, 2KHz, 10KHz
Music Tone Control Bass, Alto, Treble: ±10dB at 100Hz, 2KHz, 10KHz
THD ≤0.1% @ 1KHz under 1/8 rated power
USB Playback Support MP3, WAV, APE, FLAC
Communication RS485 central control
Frequency Response Music: 20Hz–20KHz (±3dB), Mic: 50Hz–16KHz (±3dB)
Signal-to-Noise Ratio Mic ≥85dB, Music ≥85dB
Protection Overload, Short Circuit, Over/Undervoltage
Indicator Lights Power, Output Level
Power Supply ~220V 50Hz / ~110V 60Hz
Power Loss 600W
Dimensions (L×W×H) 430 × 395 × 88 mm
Weight 5 Kg
