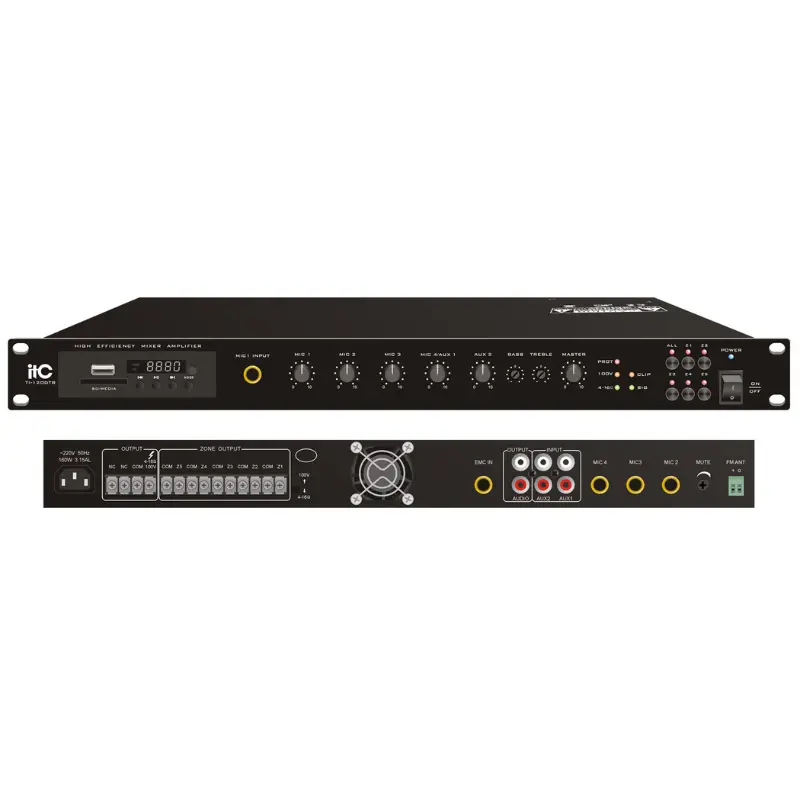

ITC Audio T-120DTB Digital Mixer Amplifier Price in Pakistan
The ITC T-120DTB is a high-performance digital mixer amplifier, ideal for mosques, schools, and public spaces. Featuring 120 watts of rated power, this slim 1U rack-mounted amplifier supports MP3, Bluetooth, and tuner functions for flexible audio input. With advanced protection, smart fan cooling, and multiple input/output options, it’s built for reliable daily operation. To explore more audio products, get a free quote from Masjidsound.pk here.
| Specification | Details |
|---|---|
| Model | TI-120DTB |
| Output | 4–16Ω, 100V |
| Output Power | 120W |
| MIC Inputs (1–4) | 5mV/600Ω (Unbalanced, 6.3mm) |
| AUX Inputs (1–2) | 350mV/10KΩ (Unbalanced RCA) |
| EMC Input | 775mV/10KΩ (Unbalanced, 6.3mm) |
| Output Sensitivity | 1000mV/470Ω (Unbalanced RCA) |
| Tone Control | Bass ±10dB @100Hz, Treble ±10dB @10kHz |
| Frequency Response | 50Hz – 16KHz (+1dB, -3dB) |
| Signal-to-Noise Ratio | MIC: 66dB, AUX: 80dB |
| Total Harmonic Distortion | < 0.5% at 1kHz (1/3 Rated Power) |
| Mute Function Priority | EMC > MIC1 > MIC2, MIC3, AUX1, AUX2 |
| Zones | 5 Zones |
| Channel Crosstalk | ≥50dB |
| Cooling System | Smart fan with variable speed |
| Protection | Short circuit, overload, overheating |
| Power Supply | AC 220–240V / 50Hz |
| Power Consumption | 160W |
| Dimensions (W×D×H) | 484 × 260 × 44 mm |
| Weight | 3.7 Kg |
