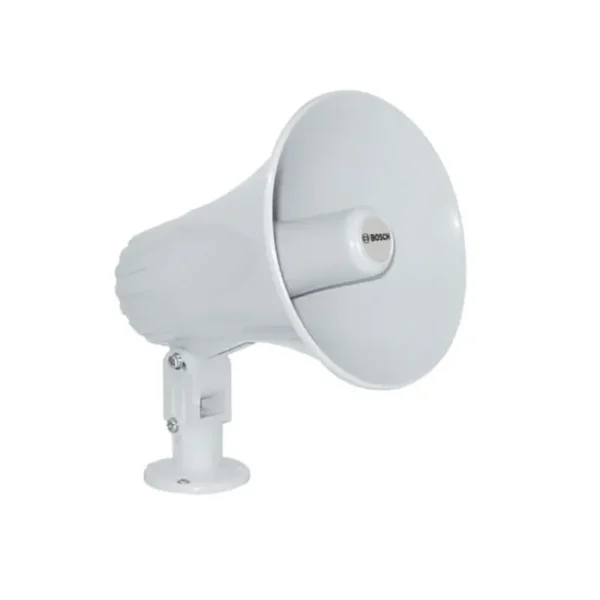

Bosch LBC-3470 Horn Speaker Price in Pakistan
The Bosch LBC-3470 Horn Speaker is designed for clear and powerful voice announcements in outdoor environments. With high-efficiency drivers and excellent speech reproduction, this speaker is ideal for mosques, open-air venues, industrial areas, and public spaces. The wide opening angle ensures sound covers a broad area, while the IP65-rated housing protects it against harsh weather. It’s easy to install with a versatile mounting bracket and meets international safety standards, making it a reliable solution for any public address system.
| Specification | Details |
|---|---|
| Max. Power | 22.5 W |
| Rated Power (PHC) | 15 W (Selectable: 15 / 7.5 / 3.75 W) |
| SPL @ Rated Power / 1W (1kHz, 1m) | 103 dB |
| Effective Frequency Range (-10 dB) | 500 Hz – 5 kHz |
| Opening Angle (H/V @ 1kHz / 4kHz, -6dB) | 130° / 150° |
| Rated Voltage | 100 V |
| Rated Impedance | 667 ohm |
| Ambient Temperature Range | -25°C to +55°C |
| Water & Dust Protection | IP65 (IEC 60259) |
| Safety Compliance | IEC 60065 |
| Connection | 4-wire cable, 50 cm |
| Aperture Diameter | 190 mm (7.5 in) |
| Overall Length | 225 mm (8.9 in) |
| Colour | Light Gray (RAL 7035) |
| Weight | 1.5 kg |
